Heavy duty machinery used double row ball slewing ring bearing

Short Description:

If you need heavy duty slewing bearing, we recommend you our Double-row ball slewing bearing Three-row roller slewing bearing.

They could bear huge axial loading and radial loading. It is especially suitable for heavy machinery requiring larger diameters.

Such as bucket wheel excavators and wheels type cranes, ship cranes, port cranes, molten steel running platforms and large-tonnage truck cranes and other machinery.


Product Detail

FAQ

Product Tags

The double-row reducing ball double-row ball slewing bearing has three races. The steel balls and spacers can be directly discharged into the upper and lower raceways. According to the stress conditions, two rows of steel balls with different diameters are arranged. This kind of open assembly is very convenient. The load-bearing angle of the upper and lower arc raceways is 90°, which can bear great axial force and tilting moment. When the radial force is greater than 0.1 times the axial force, the raceway must be specially designed. The axial and radial dimensions of the double-row reducing ball slewing ring are relatively large and the structure is tight. It is especially suitable for loading and unloading machinery such as tower cranes and truck cranes that require medium or larger diameters.

021.30.900-2

Three-row roller three-row roller slewing bearing has three races, the upper and lower and radial raceways are separated, so that the load of each row of rollers can be accurately determined. It can bear various loads at the same time. It is the largest bearing capacity of the four products. The shaft and radial dimensions are large, and the structure is firm. It is especially suitable for heavy machinery requiring larger diameters, such as bucket wheel excavators and wheels. Type cranes, ship cranes, port cranes, molten steel running platforms and large-tonnage truck cranes and other machinery.

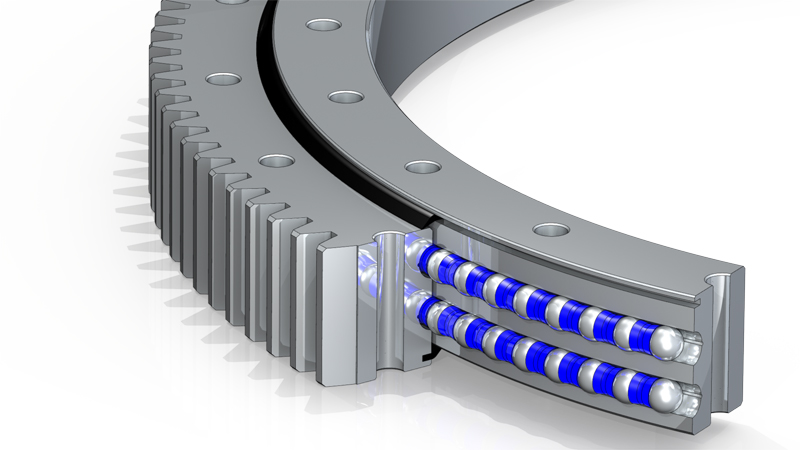

slewing-ring 021

You can contact us if you have any problem for heavy duty slewing ring bearing.


  • Previous:
  • Next:

  • 1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.

    2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.

    3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

    4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

    5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
