XZWD High quality SE series Slew drive for solar tracker system

Short Description:

1. Enclosed housing slewing drive mainly apply to the relatively high condition for high requirement for dustproof, rain-proof and anti-corrosion occasion. Precision grade IP65.
2. Different motors (AC, DC, Hydraulic ) can be designed according to customer’s requirement.
3. By adopting slewing ring as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems.
4. We can provide regular models for customer.
5. We can provide different colors for customer.
6. We can make a change or design new models for customer.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    FAQ

    Product Tags

    Xuzhou Wanda Slewing Bearing Co.,Ltd is a professional manufacturer and exporter of slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles,
    modular vehicles, single and dual axis solar tracking system, and small wind power system etc.
    SE series meet both regular and precision tracking requirement in PV, CPV and solar thermal power tracking fields, please find detailed specifications in the form.

    The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing ring drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.

    The slewing drive uses precision kinematics to provide a large proportion of single-stage gearing. Bearings and gears are assembled into a small, self-contained, and ready-to- install case to optimize weight and performance. These highly adaptable products also feature robust shock resistance, long life performance, smooth rotation, bearing protection and sealed drive options. As an experienced slew drive manufacturer, we have the capability to provide high quality slew drives.

    DIMENSIONS PARAMETER
    Model External Dimensions Installation Dimensions Mounting Hole Date
    L1 L2 L3 H2 D0 D2 D3 D4 D5 n1 M1 T1 T2 n2 M2 T3 T4
    mm Inner Ring Outer Ring
    SE3 190 160.5 80 109 152 100 no no 100 6 M10 17 32 6 M10 22 no
    SE5 219.2 170.5 93.7 80 183 70 50 103.5 135 (8-1) M10 20 42 6 M10 20 39
    SE7 295.7 186 132.7 83.8 258 120.6 98 163 203.2 10 M12 25 47 8 M12 25 43.4
    SE9 410.5 321.7 174.2 107.9 345 175 146 222.5 270 (16-1) M16 30 65.9 16 M16 30 52
    SE12 499.5 339.5 220 110.4 431 259 229 314.3 358 (20-1) M16 30 69.4 18 M16 30 51
    SE14 529.9 337.5 237.6 111 456.5 295 265 342.5 390 (24-1) M16 30 69 18 M16 30 52
    SE17 621.8 385.2 282.6 126 550.5 365.1 324 422.1 479.4 20 M16 32 79 20 M16 32 55
    SE21 750.4 475 345 140 667.7 466.7 431.8 525.5 584.2 (36-1) M20 40 85 36 M20 40 no
    SE25 862.8 469 401.8 130 792 565 512 620 675 (36-1) M20 40 87 36 M20 40 no
    PERFORMANCE PARAMETERS
    Model (MAX)kN.m
    Output Torque
    (MAX)kN.m
    Tilting Moment Torque
    KN
    Static Axial Load
    kN
    Static Radial Load
    (MAX)kN.m
    Dynamic Axial Load
    (MAX)kN.m
    Dynamic Radial Load
    (MAX)kN.m
    Holding Torque
    Gear Radio Tracking Precision Self-locking Gears kg
    Weight
    SE3 0.4 1.1 30 16.6 9.6 8.4 2 62:1 ≤0.20° Yes 14 kg
    SE5 0.6 3 45 22 14.4 11.1 5.5 62:1 ≤0.20° Yes 13 kg
    SE7 1.5 13.5 133 53 32 28 10.4 73:1 ≤0.20° Yes 23 kg
    SE9 6.5 33.9 338 135 81 71 38.7 61:1 ≤0.20° Yes 50 kg
    SE12 7.5 54.3 475 190 114 100 43 78:1 ≤0.20° Yes 65 kg
    SE14 8 67.8 555 222 133 117 48 85:1 ≤0.20° Yes 70 kg
    SE17 10 135.6 970 390 235 205 72.3 102:1 ≤0.15° Yes 105 kg
    SE21 15 203 1598 640 385 335 105.8 125:1 ≤0.15° Yes 180 kg
    SE25 18 271 2360 945 590 470 158.3 150:1 ≤0.15° Yes 218 kg



    You can contact us to know more about solar tracker used slew drive.









  • Previous:
  • Next:

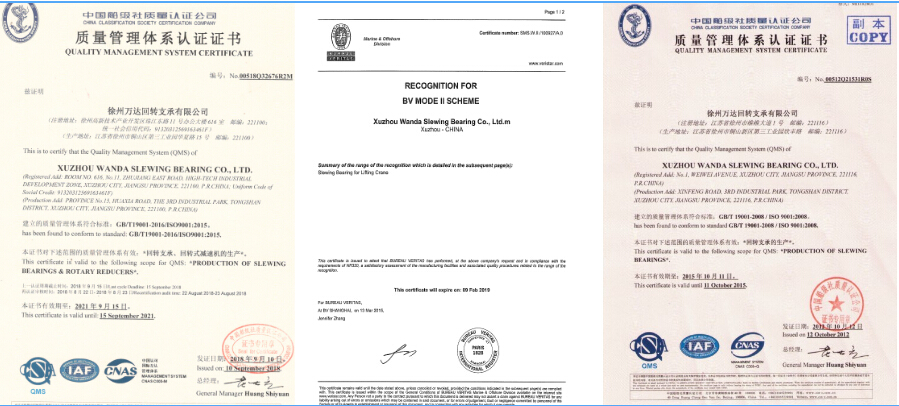

  • 1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
